※Structural feature
PRODUCT SPECIFICATIONS
What you want to know is that we work hard.
1. effective width：1400mm 2. total power:17KW 3. MAX. working speed：200m/min 4. The maximum stack height：250mm 5. The maximum stack length：3500 mmParameters
※Technical parameters
1. main transport motor：3KW 3sets frequency speed adjust motor 2. transverse output motor：1.5KW frequency speed adjust motor 3. Walking baffles motor：0.55KW frequency speed adjust motor 4. Lift motor： 3KW frequency speed adjust motor★gantry stacking.Changing single time is 5seconds，automatic counting, automatic cross out automatically for a single. ★Synchronized with the production management system，order mangement，Centralized management，do not slow down automatically for a single. ★crawler stacking platform，AC servo control movements，Stacking smooth, neat; ★When stacking reaches a set number of automatic frequency control smooth laterally out of paper； ★Tailgate AC servo control positioning for a single automatic, rapid, precise adjustment； ★Tailgate automatically shift for small orders stacking； ★Delivery side of the standard electric transport planes, and duplex trolley. ★Independent sealed control cabinets, electrical equipment operating under clean environment； ★Color touch-screen display for easy on-site operation. ★Fully automatic operation control, improve efficiency and save manpower, reduce labor intensity；※Powered motor parameters

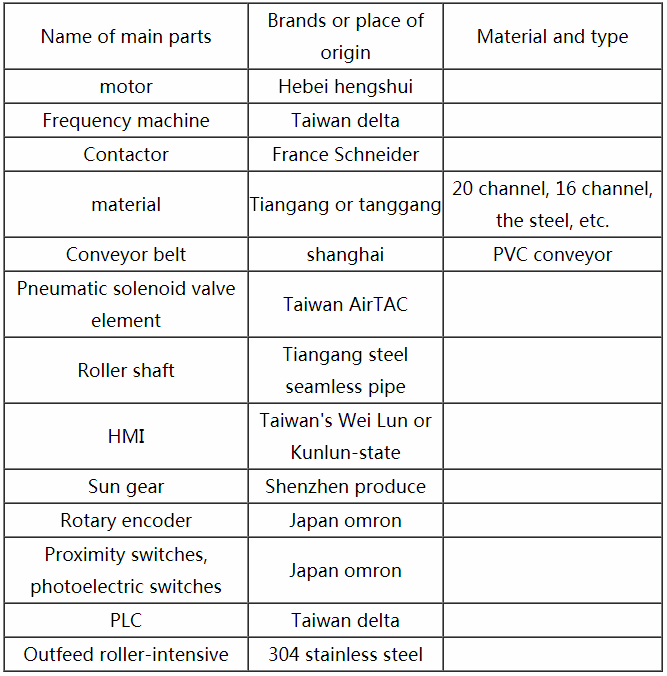

※Mainly purchased parts, raw materials and origin
