※Structural feature
PRODUCT SPECIFICATIONS
What you want to know is that we work hard.
1. MAX working width: 2200mm 2. operation direction: left or right（determined to the customer’s factory） 3. highest machinery speed: 200-250m/min 4. Mechanical configuration: computer-control helical cross cutter 5. Minimum cutting length: 500mm 6. Maximum cutting length: 9999mm 7. Precision of cutting paper: uniform ±1mm，non-uniform±2mmParameters
※Technical parameters
※Roller diameter parameters
1. main drive motor power：37KW Full AC synchronous servo 2. Before and after feeding motor power：4KW（Frequency Control） 3. Oil pump motor power：0.18KW★Cutting machine adopts inlaid front steel blade knife spiral structure, serrated knife. scissors, shears, shear force, long blade life. ★around feed rollers are used the sun gear platen way, smooth delivery, pressure evenly, easy to crush plate board or cause blockage. ★This model is the braking energy storage (non-dynamic braking), so the energy consumption in the production process, the average electricity consumption is 1/3 of an ordinary NC cutting machine, saving more than 70% power to reach the goal of saving money . ★Precision adjustable no gap gear to ensure precise blade engagement, running balance. ★Using an independent oil pump and filter with two copper distribution in each gear position oil, lubrication and cooling. ★Knife roller: fine quality forged steel material, the balanced, with good stability.※Powered motor parameters

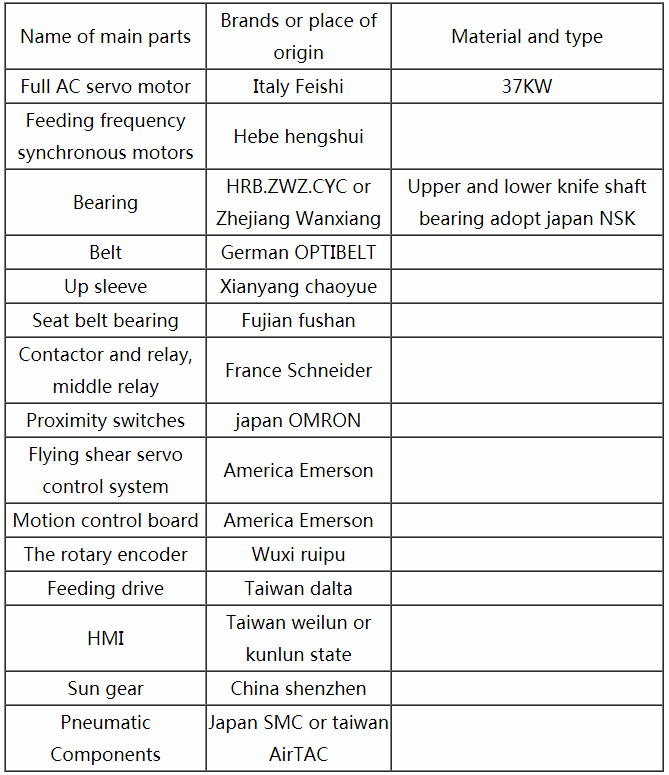

1. Cross on the knife shaft center distance: ￠216mm 2. Before the lower conveying roller diameter ￠156mm 3. After the lower conveying roller diameter: ￠156mm 4. The front of the platen roller diameter: ￠70mm 5. The front of the platen roller diameter: ￠70mm Note: After all have been grinding rollers, hard chrome plated at (on except under the knife shaft) dealing※Mainly purchased parts, raw materials and origin
